VertivTM Security Panel System
VertivTM Security Panel System

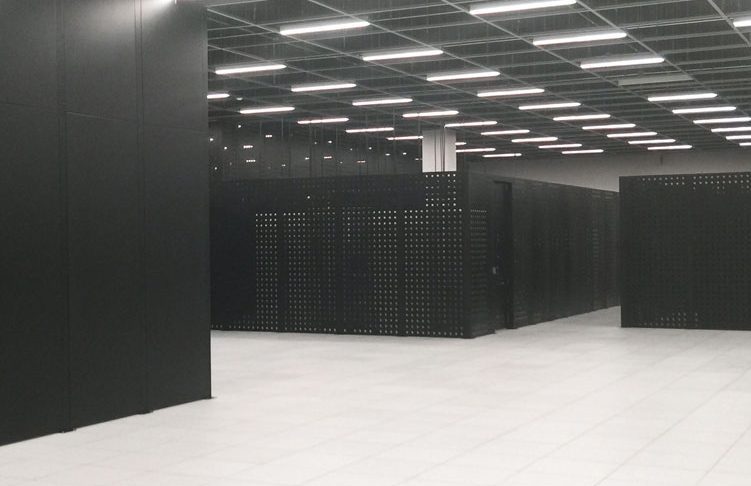

The Security Panel System consists of a series of aluminum panels, steel posts, and doors that create an enclosed space—big or small—that help data centers meet multiple industry and regulatory standards, including PCI DSS, HIPAA, and FISMA.
Strategic Deployment: Internal Infrastructure Solutions
Customer Separation
Tenant space in this colocation facility is separated to ensure cabinets and equipment remain secure within the shared data center. Intelligent access control provides the tenant with a system to monitor and manage who has access to the space—especially useful when the tenant does not visit the colo facility regularly.
Mechanical Infrastructure
Power distribution units deployed on the data center floor of a colocation facility are isolated from cabinets—as recommended by BICSI in top-tier hosting facilities. PDUs, CRAC units and other mechanical infrastructure that are imperative to uptime are safeguarded from tenants and can only be accessed by authorized employees of the colo facility.
Expandable IDF Closet
A dedicated telecommunications closet is built on the open warehouse floor which proved to be the best location for the intermediate distribution frame (IDF) at this facility. The modular build-out of the system will allow the size of the closet to grow as the IDF grows with the expansion of the facility. Intelligent access control prevents unauthorized access to the closet.
Equipment Segregation
Storage and network equipment, managed by different individuals at this Fortune 100 company, are separated by a custom (in color and material) security panel system. The company’s risk management team require the separation so that ownership and responsibility for uptime (and even downtime) can be appropriately managed.
SPECIFICATIONS
POSTS AND PANELS
DOORS
| BASE POST | UPPER POST |
|---|---|
|
114″H – Includes top support bracket and post cover (riveted cover so assembly hardware is not exposed); Steel
|
54″H – Includes post cover (riveted cover so assembly hardware is not exposed); Steel
|
|
SP114-BST
Single base post |
SP54-UPST
Single upper post |
| SLIDING DOORS |
|---|
|
114″H x 48″W doors, Aluminum
|
|
SP114-SLDR-48V
Vented with pull handle and keyed gate lock, manual close |
|
SP114-SLDR-48S
Solid with pull handle and keyed gate lock, manual close |
|
SP114-SLDR-48VAC
Vented with pull handle and keyed gate lock, auto close |
|
SP114-SLDR-48SAC
Solid with pull handle and keyed gate lock, auto close |
| BASE PANELS | UPPER PANELS |
|---|---|
|
114″H – Aluminum
|
54″H – Aluminum
|
|
SP114-BP-48V
Vented, 48″W |
SP54-UP-48V
Vented, 48″W |
|
SP114-BP-48S
Solid, 48″W |
SP54-UP-48S
Solid, 48″W |
|
SP114-BP-24V
Vented, 24″W |
SP54-UP-24V
Vented, 24″W |
|
SP114-BP-24S
Solid, 24″W |
SP54-UP-24S
Solid, 24″W |
|
SP114-BP-12V
Vented, 12″W |
SP54-UP-12V
Vented, 12″W |
|
SP114-BP-12S
Solid, 12″W |
SP54-UP-12S
Solid, 12″W |
| DOUBLE SLIDING DOORS |
|---|
|
114″H x 96″W doors, Aluminum
|
|
SP114-DSLDR-96V
Vented with pull handle and keyed gate lock, manual close |
|
SP114-DSLDR-96S
Solid with pull handle and keyed gate lock, manual close |
|
SP114-DSLDR-96VAC
Vented with pull handle and keyed gate lock, auto close |
|
SP114-DSLDR-96SAC
Solid with pull handle and keyed gate lock, auto close |
| ADJUSTABLE BASE PANELS | UPPER PANELS |
|---|---|
|
114″H – Installs from post-to-post or from post-to-wall, Aluminum
|
54″H – Installs from post-to-post or from post-to-wall, Aluminum
|
|
SP114-ABP-35S
Solid, 3-5″ |
SP54-AUP-35S
Solid, 3-5″ |
|
SP114-ABP-812S
Solid, 8-12″ |
SP54-AUP-812S
Solid, 8-12″ |
|
SP114-ABP-1118S
Solid, 11-18″ |
SP54-AUP-1118S
Solid, 11-18″ |
|
SP114-ABP-1724S
Solid, 17-24″ |
SP54-AUP-1724S
Solid, 17-24″ |
|
|
SP114-BST
Single Post |
|
|
SP114-BST
Single Post |
| EGRESS SWINGING DOORS |
|---|
|
114″H x 48″W doors, Aluminum
|
|
SP114-SWDR-LH48S
Solid, swings to the left; emergency exit with auto close; door can be upgraded to serve as an entrance by adding electronic door access and an electronic strike |
|
SP114-SWDR-RH48S
Solid, swings to the right; emergency exit with auto close; door can be upgraded to serve as an entrance by adding electronic door access and an electronic strike |
ACCESS CONTROL
| ELECTRONIC DOOR ACCESS |
|---|
|
Intelligent access control limits, monitors, and manages individuals with access into the secure space; Electronic Door Access requires an Electronic Door Lock
|
|
GLSPXHSEAL-4045
Pinpad and HID reader, stand-alone system; Single-door proximity access control with quick installation—no user interface required for setup and use |
|
GLASPXSEAL-RP40
HID reader that integrates with existing BMS*; compatible with a growing range of technologies to function with existing BMS access control |
|
GLASPXSEAL-RP40EVO
HID reader, stand-alone system; Simple user interface that uses a standard web browser |
|
GLASPXSEAL-W2
Biometric scanner and card reader that integrates with existing BMS*; Provides increased security measures through finger-print authentication and support of dual-frequency RFID technology |
| ELECTRONIC DOOR LOCKS |
|---|
|
An electronic door lock is required when electronic door access will be used
|
|
GL-SLDRML-SEAL01
Electromagnetic lock for use on sliding doors |
|
GL-SWDREL-SEAL01
Electronic strike for use on swinging door (allows door to be used as an entrance point) |
