Vertiv™ Wall Mount Environmental Outdoor

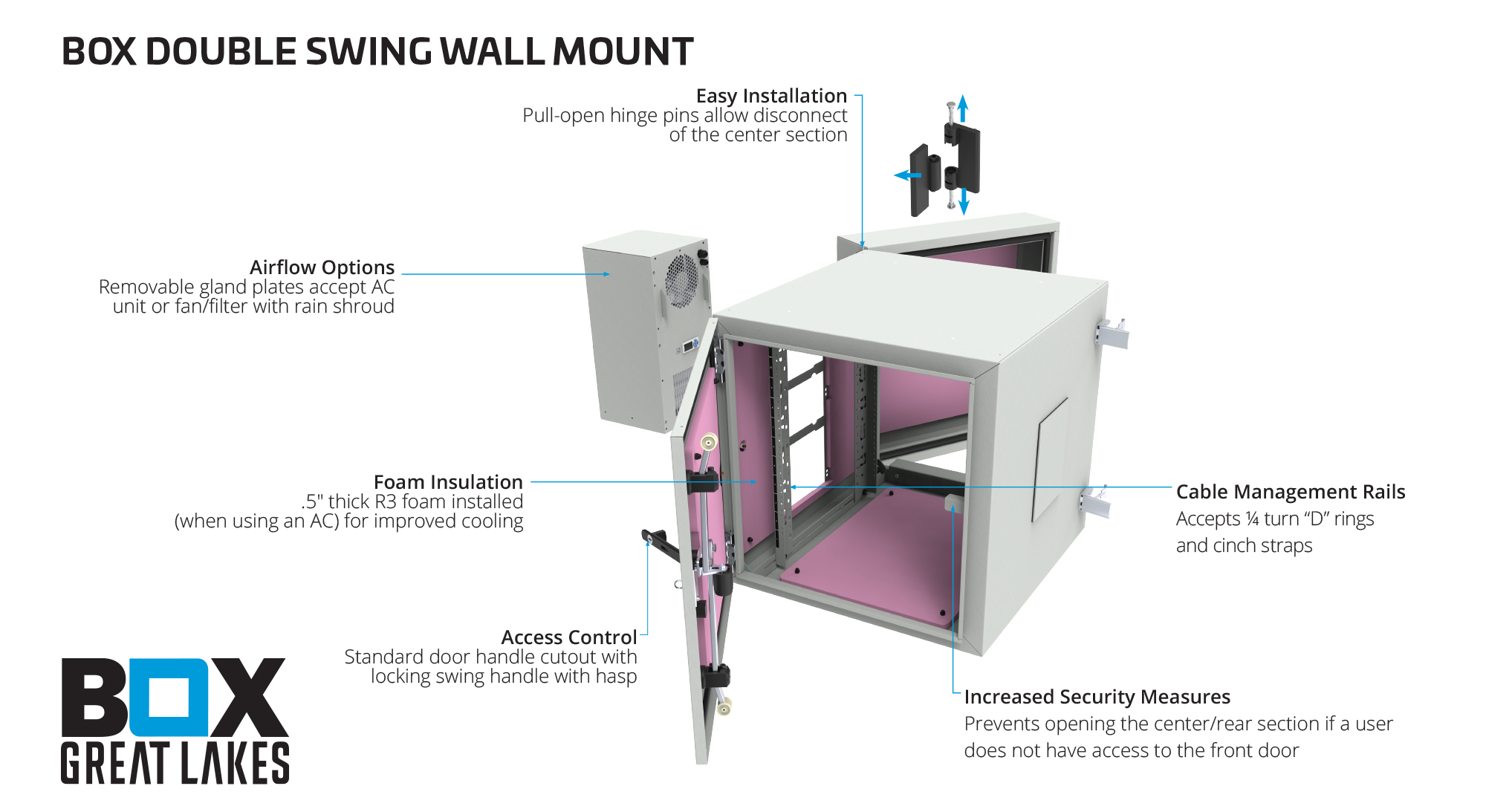

Welded frame and doors constructed of cold rolled steel
Two pair of depth adjustable tapped #12-24 mounting rails (with RMU marking) for 19” mounting; includes package of screws
Side face of rails feature square hole pattern for ¼ turn “D” rings, and “T” slots for cinch straps
Front door with 150mm x 25mm Standard door handle cutout with locking swing handle with hasp and 3-pt latch; optional quarter-turn locks available
Internal security mechanism through center section allows opening the center/rear section only when the front door is open
External rear compression twist latches between center and rear section
Lift off rear hinges for easy installation
Removable gland plates accept optional AC unit or fan/filter kit with rain shrouds
- Wall mount configured with AC includes .5” thick R3 insulation (mechanically fastened)
- Wall mount configured with fan/filter kit must have rain shrouds installed to maintain NEMA rating
- AC unit and fan/filter kit cannot be used in conjunction with each other
Color: RAL 7035 Gray, with UV-rated textured powder coat
Standards: NEMA 250 Type 4
Country of Origin, USA
